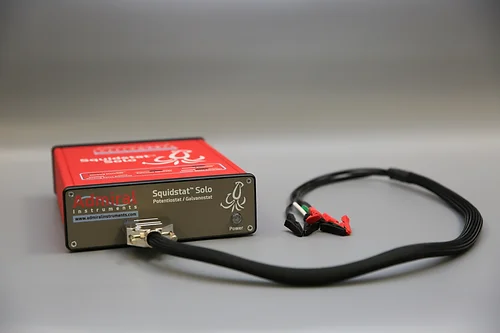

Squidstat Solo

Each Squidstat Prime includes one 90 cm channel cable, one USB cable, and one power cable. The Squidstat User Interface software and unlimited remote technical support are included with purchase.

Description

Economical, Reliable Potentiostat For One-Channel DC Experiments

Squidstat Solo Potentiostat Highlights:

  • Top quality single-channel functionality with a compact design
  • Least-expensive research-grade potentiostat in the world
  • Multiple units can run simultaneously with other Squidstat models
  • Onboard memory (16 GB) automatically backs up all channel data for future recovery

Each Squidstat Prime includes one 90 cm channel cable, one USB cable, and one power cable. The Squidstat User Interface software and unlimited remote technical support are included with purchase.



General Specifications

Price Per Unit ($USD) $1,900
Channels Per Unit 1
Operating Modes Pot / Gal / ZRA
Cell Connections 2, 3, 4, or 5 electrode
ADC/DAC Resolution 16 bit resolution
Slew Rate (No Load) 300 kV/s
Maximum Sampling Speed 100,000 samples/s
Floating and/or Earth-grounding Both (switchable)
Input Impedance >10 Tera-ohm (typical)
Input Bias Current <10 pA (typical)
Data Backup Memory (Onboard) 16 GB
Physical Dimensions 24 cm x 17 cm x 6 cm
Channel Cable Length 90 cm
Computer Interface 1 USB per unit
Power Supply Requirements 100 – 240 VAC, 50 – 60 Hz

Potentiostatic Input/Output

Compliance Voltage ±12 V per channel
Scan Range (Controlled Voltage) 1 range, ±10 V
Applied Potential Accuracy 0.1% of setpoint, 2 mV max accuracy
Applied Potential Resolution 300 µV
Measured Potential Accuracy 0.1% of setpoint, 1 mV max accuracy
Measured Potential Resolution 300 µV

Galvanostatic Input/Output

Maximum Current ±100 mA
Current ranges 8 ranges (10 nA to 100 mA)
Applied Current Accuracy 0.2% of range, 1 nA max
Applied Current Resolution 0.003% of range, 300 fA max
Measured Current Accuracy 0.1% of range, 1 nA max
Measured Current Resolution 0.003% of range, 300 fA max
